Huepar 603CG Laser Level

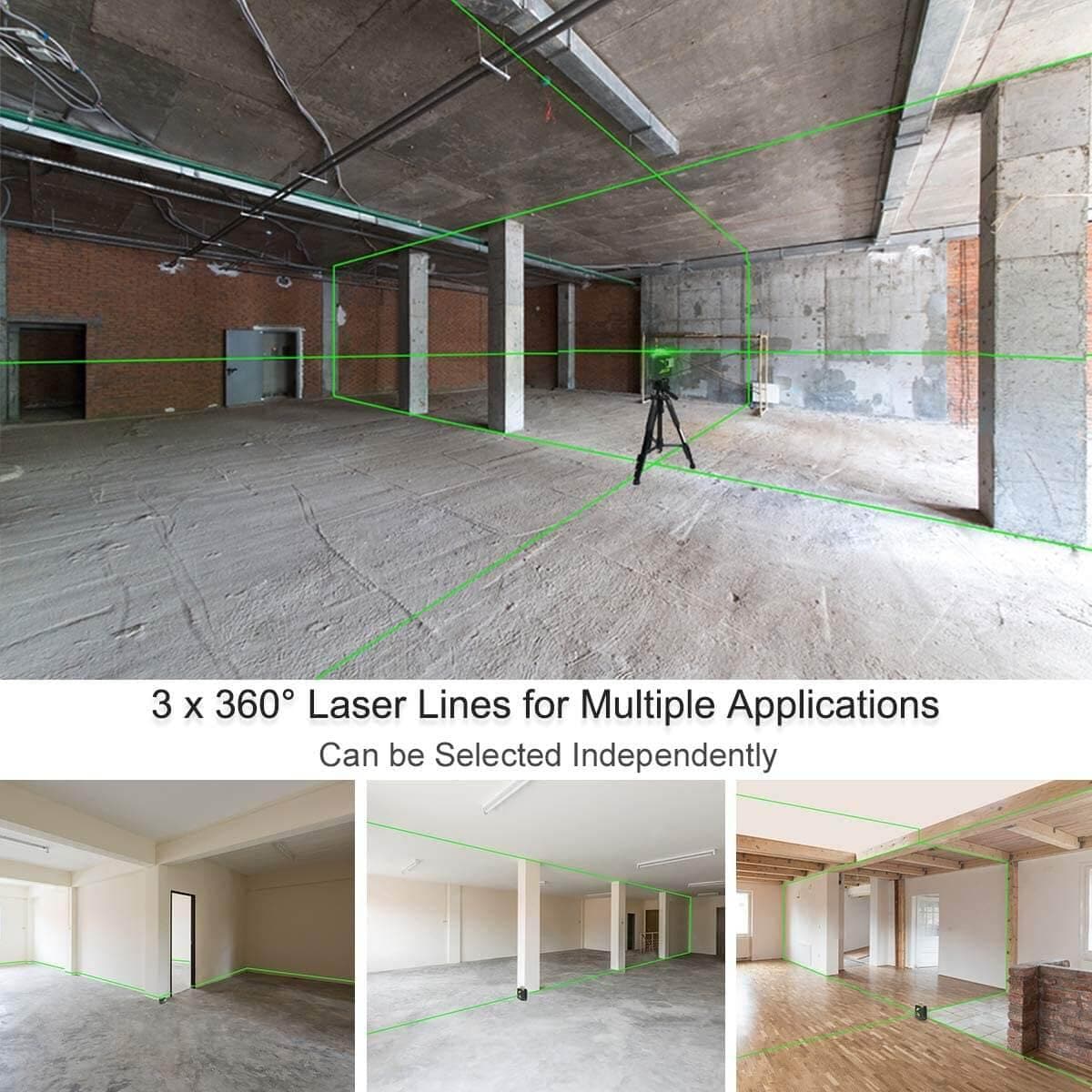

3 x 360° Multiple Line Switching Functions

• This laser level allows users to line up level, align, square and plumb by generating three 360° laser planes –one horizontal and two vertical lines.
• The one 360° horizontal and two 360° vertical laser lines can be selected individually depends on job site applications.
• Multiple Line Switching Modes can be Selected Freely Accordingly: 360° Horizontal Line mode, one 360° Vertical Line mode, Two 360° Vertical Lines mode, 360° Horizontal&360° Vertical Lines mode.



Self-leveling mode & Manual mode

Self-leveling mode:

When the laser tool is switched to the unlocked position, self-leveling mode is enabled. The laser beam will blink continuously when the tool is beyond self-leveling range (4°±1°).

Manual mode:

When the pendulum locked, you can place the laser tool at any angle to have non-level straight lines. The laser beam will blink every 3-5 seconds to remind you that it's not self-leveling now.



Pulse Mode

• Turn ON pulse mode: After power on, short press the button besides the power button to turn on the pulse mode. The indicator will light up in red.
• Pulse mode extends the working range up to 200Ft in brighter working conditions when using with Huepar Line Laser Receiver.
• When use with a receiver, it’s necessary to turn on the pulse mode.
• It is compatible with Huepar LR-6RG Line Laser Receiver only.



Easy Use

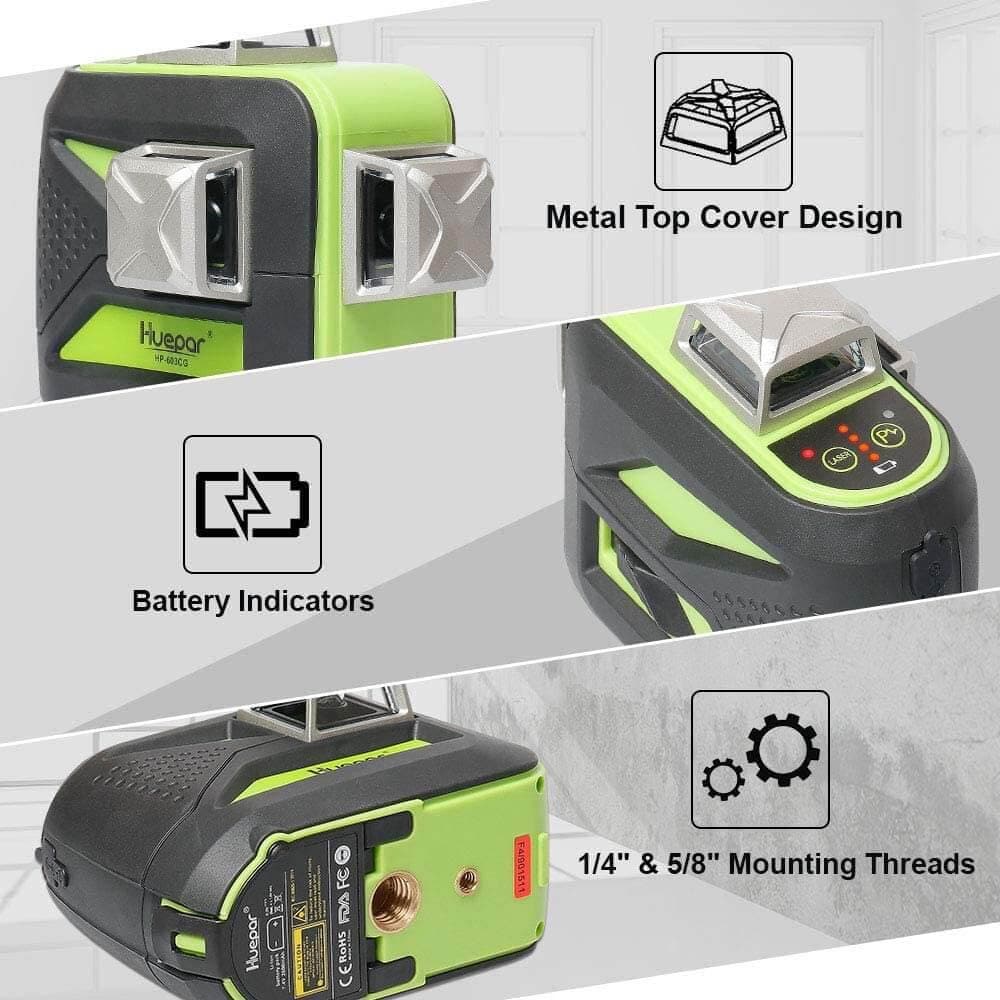

• Metal Top Design: Over-molded metal top laser window with IP54 water/dust resistance ensures you work well in hazardous working environments.
• Green Target Plate: Increases the visibility of the laser beam.

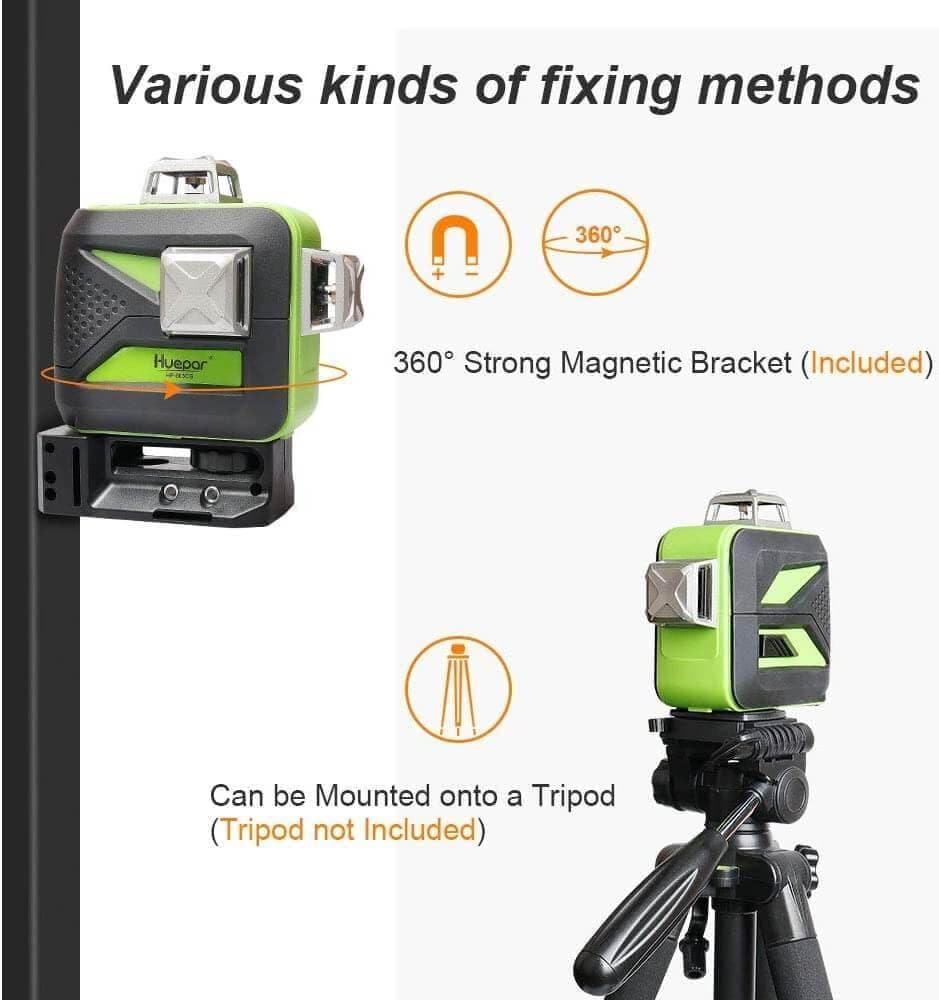

• 360° Strong Magnetic Pivoting Base: Allows for attachment to metal track and steel，supporting you to turn the laser level around at 360 degree, delivering lines at any angle
• Two Mount Sizes: 1/4"-20 and 5/8"-11 mounting threads for temporarily fastening in place or being fixed on tripod.

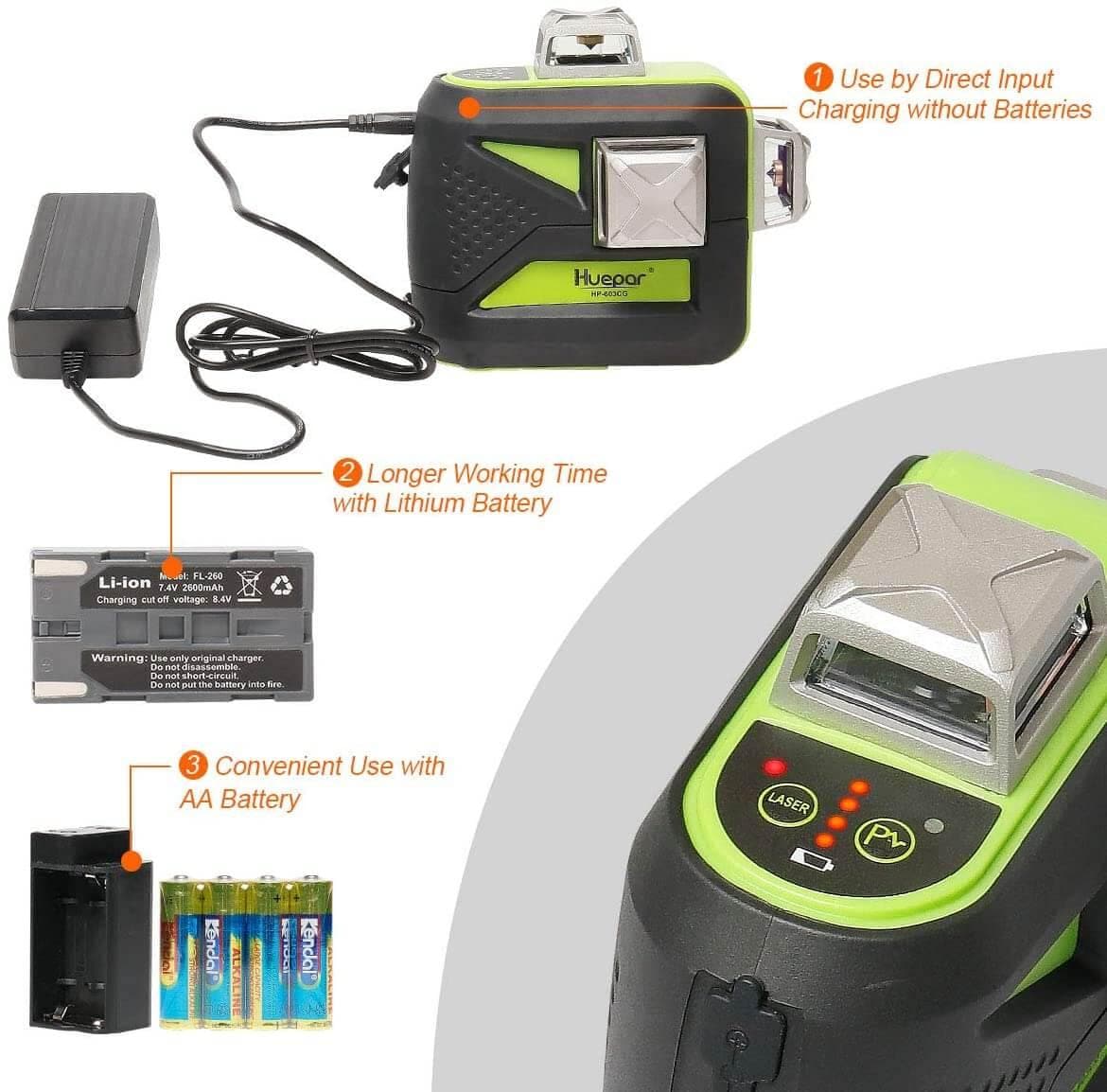

Triple Power Supply

• This laser tool utilizes the included large capacity lithium battery which is compatible with Samsung SB-L110 battery.
• This laser tool comes with an holder for installing AA battery for using the tool.
• Direct input charging: This laser tool can be used at job site with direct input charging even if take out the battery.
• Charging protection help prevent the tool from overcharge.

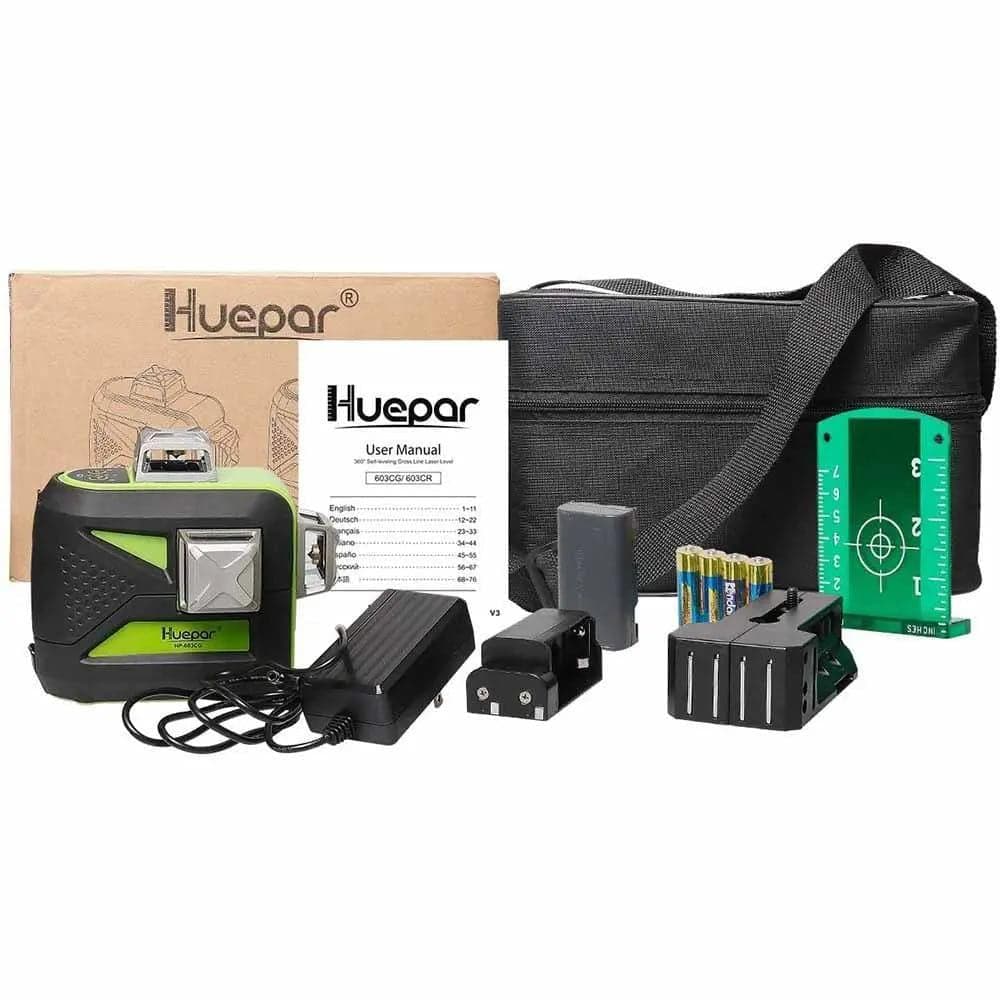

Items in the Package
